CP3808 Series

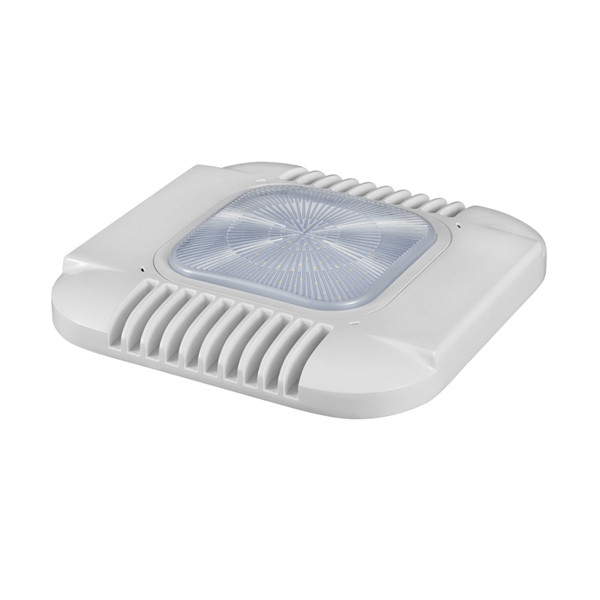

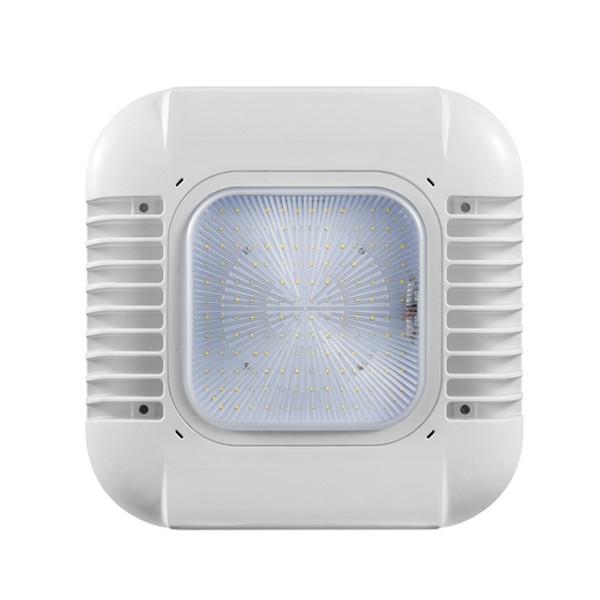

CP3808 Series LED Canopy Light has an extremely thin profile constructed of rugged cast aluminum. It can be surface mounted easily from below the canopy deck and can be pendant mounted. This series helps to increase location visibility and incoming traffic resulting in better lighting experiences and lower operating costs. It outperforms existing LED and metal halide (MH) options making it the ideal lighting solution for safer and more appealing petroleum service stations, convenience stores and drive-thru restaurants or banking locations.


PRODUCT INFORMATION & DOWNLOADS

Product Information

Features

  DLC 4.4 qualified
  Low glare rating and minimum 70 CRI
  Slim and low profile design
  Exclusive durable white finish
  Utilize high-quality Lumileds SMD LEDs and MEAN WELL driver
  100W, 130W and 150W options
  IP65 rated, UL wet listed
  5 years warranty


Specifications

Watts Model# Lumen Replaces Dimensions Weight
100 W TG-CP3808S100W 11000 lm 250 W 380 x 380 x 80 mm 6.8 kg
130 W TG-CP3808S130W 14300 lm 300 W 380 x 380 x 80 mm 6.9 kg
150 W TG-CP3808S150W 16500 lm 400 W 380 x 380 x 80 mm 6.9 kg


Lumen Efficacy 110 lm/W
Input Voltage 100-277 VAC
CCT 4000K / 5000K
CRI >70
Beam Angle 110°
Rated Life 50000 hours
Working Temperature -20°C to +45°C
Warranty 5 Years



Mounting

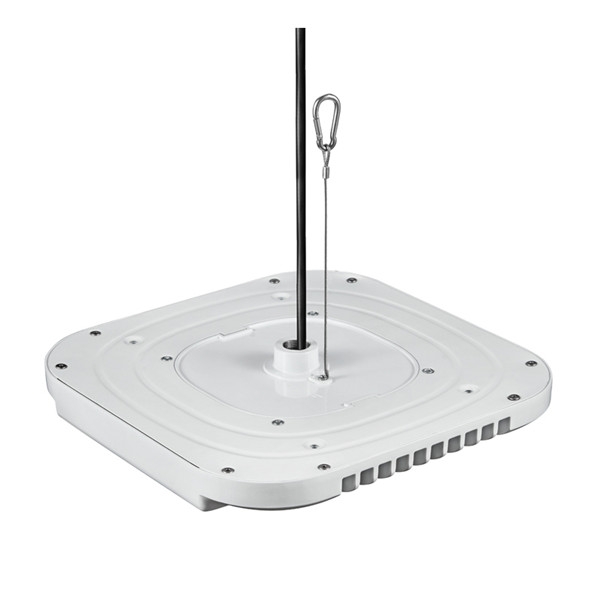

Pendant mount (
3/4‘‘ NPT Stem)


Certificates

CE, RoHS, FCC, cULus, DLC
UL File Number: E476514


Applications


Airport,  auto dealership,
corporate & office, education, government & municipal,
petroleum & convenience store, restaurant & hospitality,

retail & grocery

Questions about our Products or Prices?

We‘re always excited to hear from you, so feel free to get in touch, we will reply you in 12 hours or less.

TGLIGHTS values your privacy. Your name and information will never be rented or sold. The information you provide is for TGLIGHTS‘s internal use only.

Downloads

  • CP3808 Series LED Canopy Light Spec Sheet TG-CP3808S150W

    PDF
  • CP3808 Series LED Canopy Light Spec Sheet TG-CP3808S130W

    PDF
  • CP3808 Series LED Canopy Light Spec Sheet TG-CP3808S100W

    PDF
  • TG-CP3808S150W IES file

    IES
  • TG-CP3808S130W IES file

    IES
  • TG-CP3808S100W IES file

    IES
