TG-CP3808S100W

< >

CP3808 Series LED Canopy Light has an extremely thin profile constructed of rugged cast aluminum. It can be surface mounted easily from below the canopy deck and can be pendant mounted. This series helps to increase location visibility and incoming traffic resulting in better lighting experiences and lower operating costs. It outperforms existing LED and metal halide (MH) options making it the ideal lighting solution for safer and more appealing petroleum service stations, convenience stores and drive-thru restaurants or banking locations.

PRODUCT INFORMATION & DOWNLOADS

REQUEST PRICING Share

Product Information

Features

►  DLC 4.4 qualified
►  Low glare rating and minimum 70 CRI
►  Slim and low profile design
►  Exclusive durable white finish
►  Utilize high-quality Lumileds SMD LEDs and MEAN WELL driver
►  IP65 rated, UL wet listed
►  5 years warranty

Specifications

Watts	100 W
Model#	TG-CP3808S100W
Lumen	11000 lm
Lumen Efficacy	110 lm/W
Replaces	250 W
Input Voltage	100-277 VAC
CCT	4000K / 5000K
CRI	>70
Beam Angles	110°
Dimensions	380 x 380 x 80 mm
Weight	6.8 kg
Rated Life	50000 hours
Working Temperature	-20°C to +45°C
Warranty	5 Years

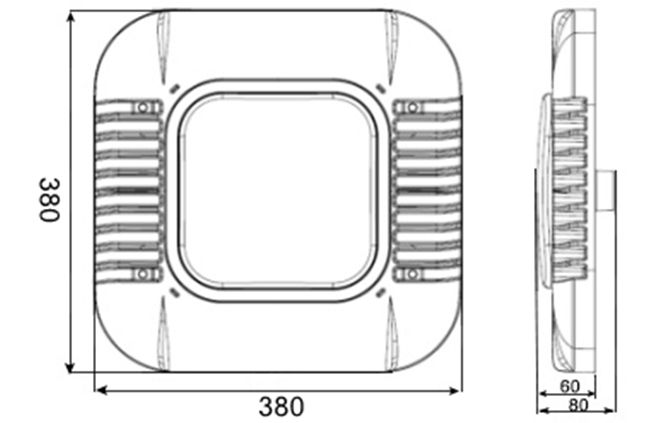

Dimensions

Length: 380 mm
Width: 380 mm
Height: 80 mm

Photometrics

Mounting

Pendant mount (3/4‘‘ NPT Stem)

Certificates

CE, RoHS, FCC, cULus, DLC
UL File Number: E476514

Applications

Airport, auto dealership,
corporate & office, education, government & municipal,
petroleum & convenience store, restaurant & hospitality,
retail & grocery
