TG-CP3808S150W

CP3808 Series LED Canopy Light has an extremely thin profile constructed of rugged cast aluminum. It can be surface mounted easily from below the canopy deck and can be pendant mounted. This series helps to increase location visibility and incoming traffic resulting in better lighting experiences and lower operating costs. It outperforms existing LED and metal halide (MH) options making it the ideal lighting solution for safer and more appealing petroleum service stations, convenience stores and drive-thru restaurants or banking locations.


PRODUCT INFORMATION & DOWNLOADS

Product Information

Features

  DLC 4.4 qualified
  Low glare rating and minimum 70 CRI
  Slim and low profile design
  Exclusive durable white finish
  Utilize high-quality Lumileds SMD LEDs and MEAN WELL driver
  IP65 rated, UL wet listed
  5 years warranty


Specifications

Watts 150 W
Model# TG-CP3808S150W
Lumen 16500 lm
Lumen Efficacy 110 lm/W
Replaces 400 W
Input Voltage 100-277 VAC
CCT 4000K / 5000K
CRI >70
Beam Angle 110°
Dimensions 380 x 380 x 80 mm
Weight 6.9 kg
Rated Life 50000 hours
Working Temperature -20°C to +45°C
Warranty 5 Years



Dimensions



Length: 380 mm
Width: 380 mm
Height: 80 mm

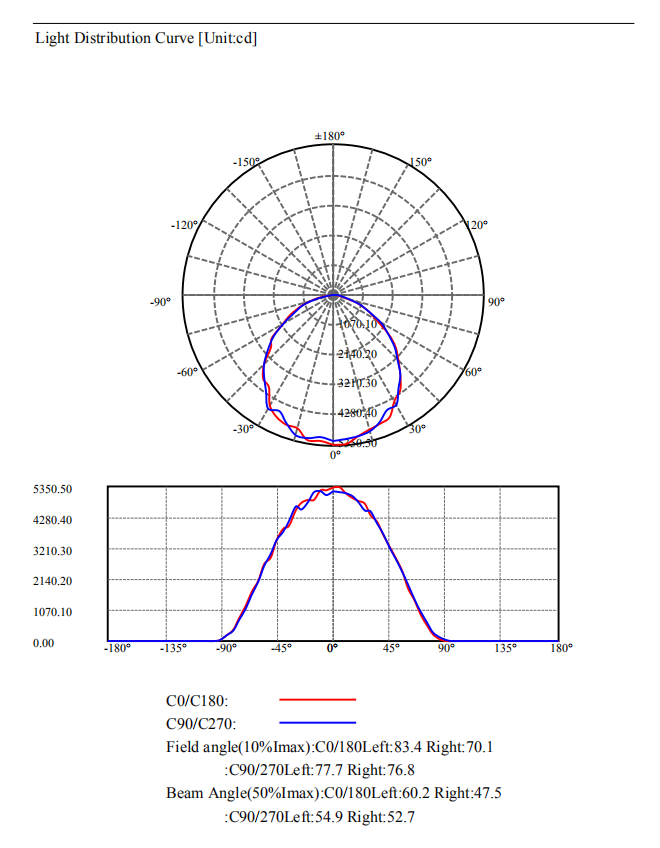

Photometrics




Mounting

Pendant mount (
3/4‘‘ NPT Stem)


Certificates

CE, RoHS, FCC, cULus, DLC
UL File Number: E476514


Applications


Airport,  auto dealership,
corporate & office, education, government & municipal,
petroleum & convenience store, restaurant & hospitality,

retail & grocery
