Line D

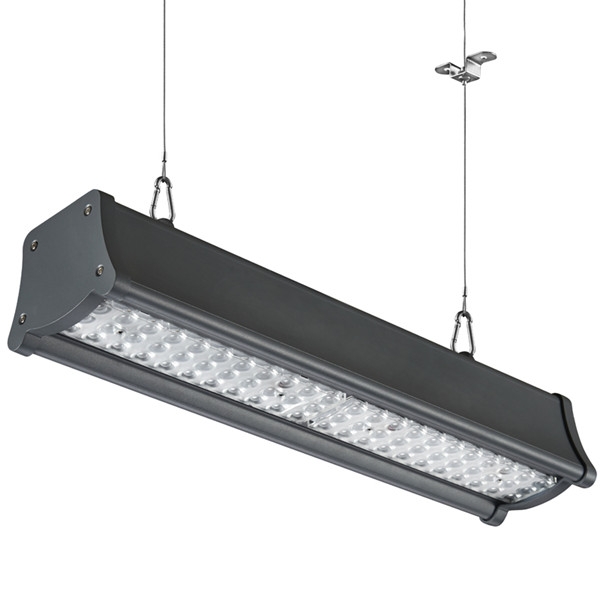

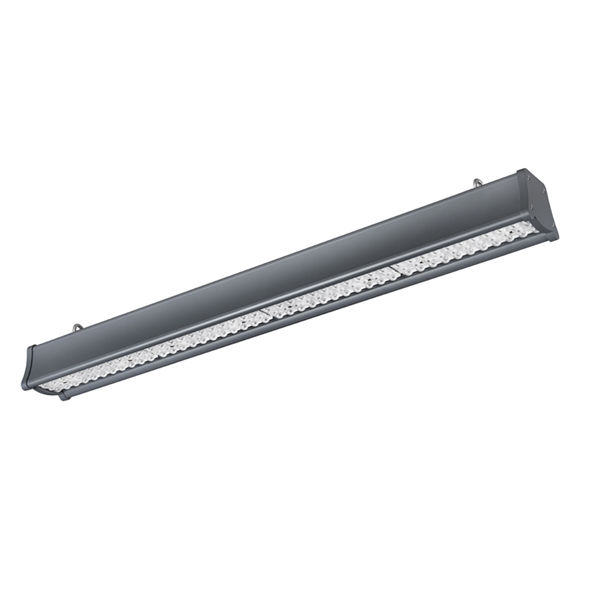

The Line D LED Linear High Bay offers 4 different optical patterns, which enable you to handle the most demanding indoor universal lighting situations. With a modular design, this stylish luminaire provides improved illumination performance while reducing energy consumption.


PRODUCT INFORMATION & DOWNLOADS

Product Information

Features

  DLC V4.4 qualified
  Low glare rating
  Modular design, built-in power supply design
  Integrally formed 6063 aluminum alloy heat sink
  Utilize high-quality Lumileds SMD LEDs and Inventronics driver
  Available in 2-, 3-, 4-, and 5-foot lengths
  Wide variety of optics
  0-10V Dimming standard
  IP54 rated, UL damp listed, designed for easy cleaning
  5 years warranty


Specifications

Watts Model# Lumen Replaces Dimensions Weight
60 W TG-LD0660W 6900 lm 200 W 600 x 140 x 110 mm 4.2 kg
90 W TG-LD0990W 10800 lm 300 W 900 x 140 x 110 mm 5.8 kg
120 W TG-LD12120W 14400 lm 400 W 1200 x 140 x 110 mm 7.1 kg
150 W TG-LD15150W 17200 lm 600 W 1500 x 140 x 110 mm 8.0 kg


Lumen Efficacy 115 ~ 120 lm/W
Input Voltage 100-277 VAC
CCT 4000K / 5000K
CRI >70
Beam Angles 30°, 60°, 90°, Double Asymmetric
Rated Life 50000 hours
Working Temperature -30°C to +45°C
Warranty 5 Years


Driver and Control Options

0-10V Dimming Driver
EM Backup Power Supply
Microwave Motion Sensor


Mounting

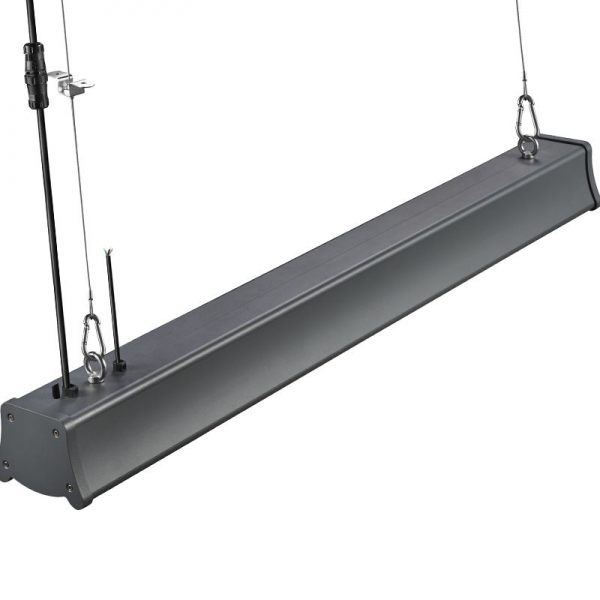

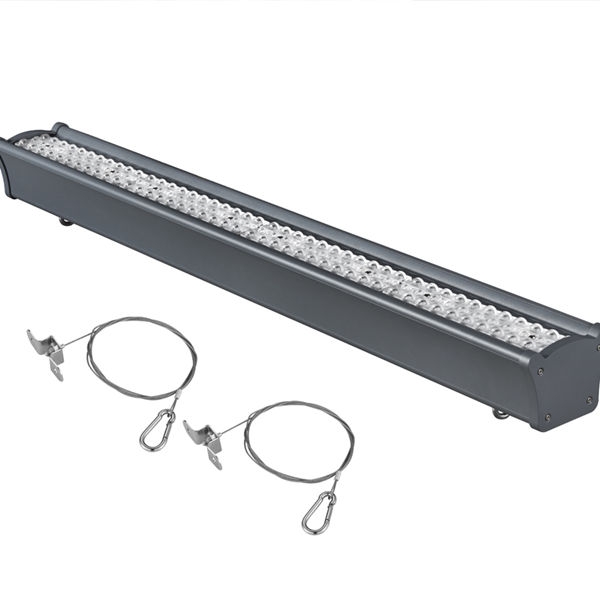

Cable-suspended mount


Certificates

CE, RoHS, FCC, cULus, DLC
UL File Number: E476514


Applications

Interior high-bay & low-bay,
auto dealership, education,
municipal, retail & grocery,
industrial, food production and warehouse,
indoor sports halls, exhibition halls
