Premium T400

Customers in industrial and warehousing applications are constantly looking for ways to reduce the amount of energy required to light their facilities. The Premium T400 LED Linear Highbay light fixtures are designed to efficiently light any large interior space with 4 to 12 meters height. They can directly replace 175 and 600 W HID high-bays, thereby generating significant energy savings. With a choice of mounting methods, installation is easy and secure.


PRODUCT INFORMATION & DOWNLOADS

Product Information

Features

  High efficacy of 130-140 lm/W
  Low glare rating and CRI of more than 80
  Integrally formed 6063 aluminum alloy heat sink

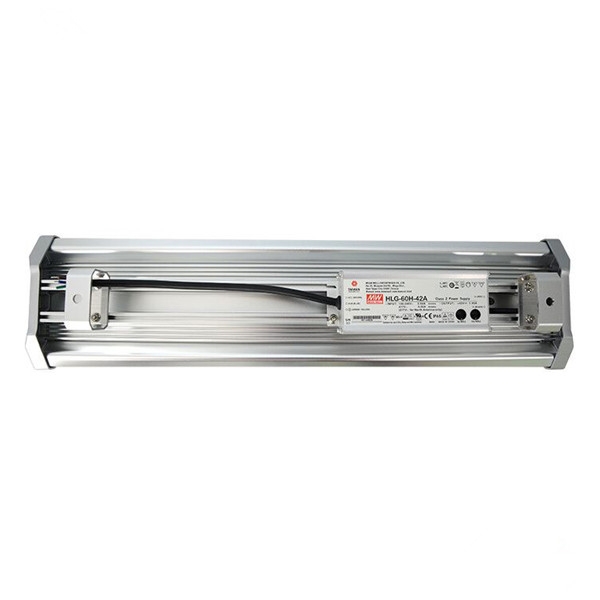

  Utilize high-quality LG SMD LEDs and MEAN WELL driver
  Available in 2-, 3-, 4-, and 5-foot lengths
  1-10V dimming option
  IP65 rated, UL wet listed
  5 years warranty


Specifications

Watts Model# Lumen Replaces Dimensions* Weight
60 W T4000660W 7800 lm 175 W 600 x 150 x 67 mm 3.4 kg
80 W T4000680W 10400 lm 200 W 600 x 150 x 67 mm 3.4 kg
100 W T40009100W 13000 lm 250 W 900 x 150 x 67 mm 4.9 kg
120 W T40009120W 15600 lm 300 W 900 x 150 x 67 mm 5.0 kg
120 W T40012120W 15600 lm 300 W 1200 x 150 x 67 mm 5.8 kg
150 W T40012150W 19500 lm 400 W 1200 x 150 x 67 mm 5.8 kg
200 W T40015200W 26000 lm 600 W 1500 x 150 x 67 mm 7 kg


Lumen Efficacy 130 lm/W
Input Voltage 100-277 VAC
CCT 4000K / 5000K
CRI >80
Beam Angle 120°
Rated Life 50000 hours
Working Temperature -30°C to +55°C
Warranty 5 Years


Notes: * Height is only for aluminum alloy shell.


Driver and Control Options

1-10V Dimming Driver
EM Backup Power Supply
Microwave Motion Sensor


Mounting Options

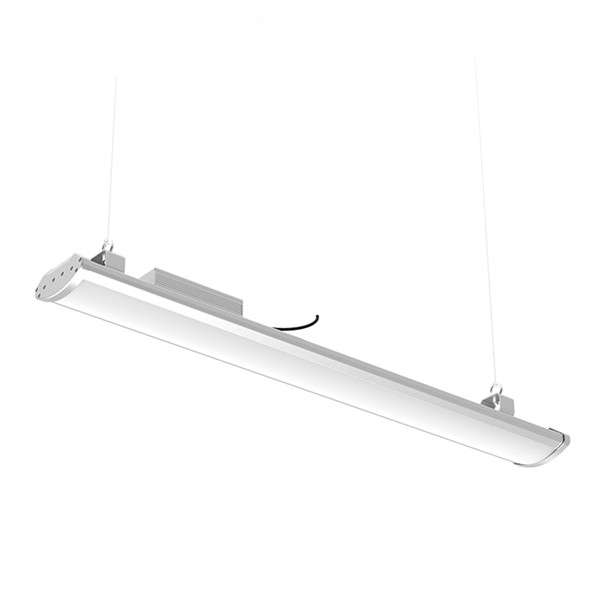

Cable-suspended mount or direct mount


Certificates

CE, RoHS, SAA, FCC, cULus
UL File Number: E476514


Applications

Interior high-bay & low-bay, auto dealership, education,
municipal, retail & grocery, industrial & warehouse
