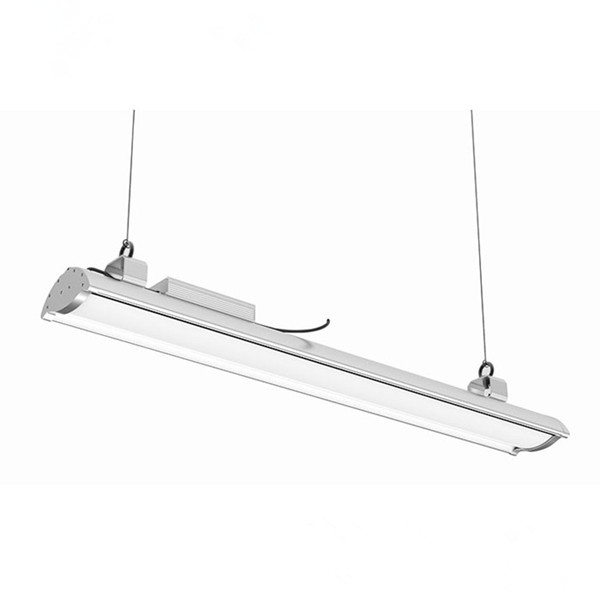

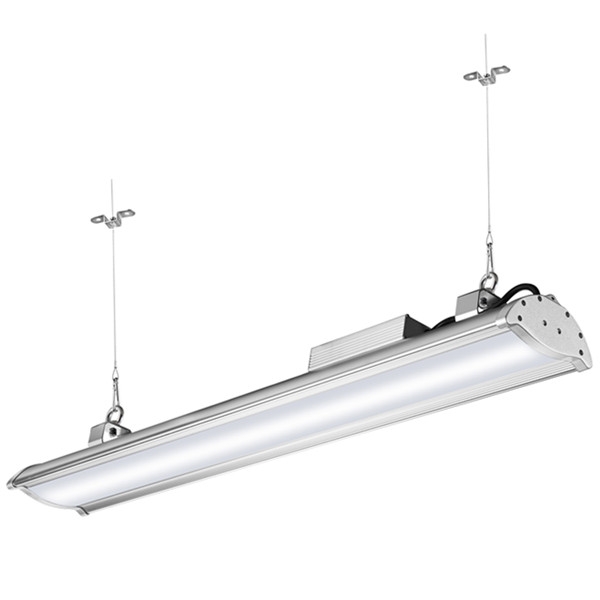

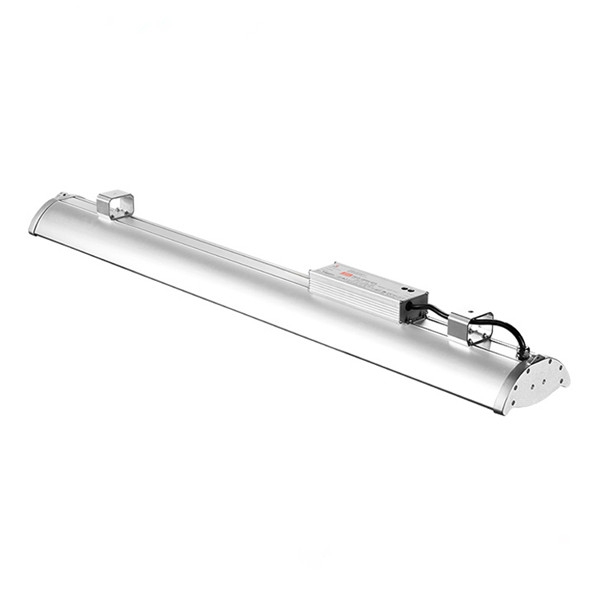

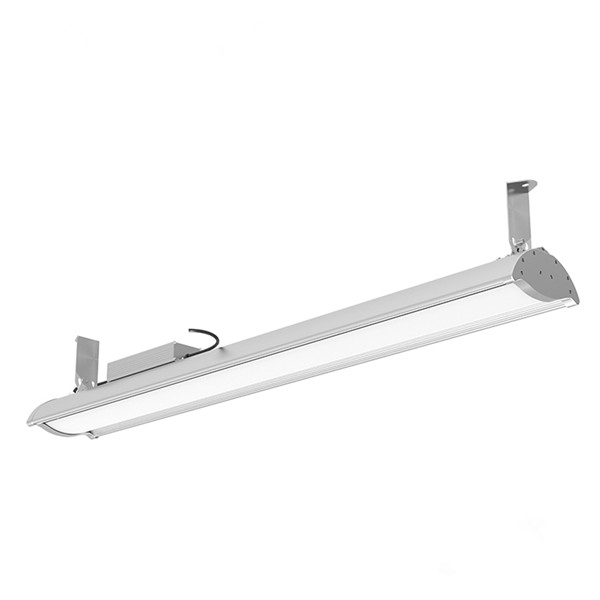

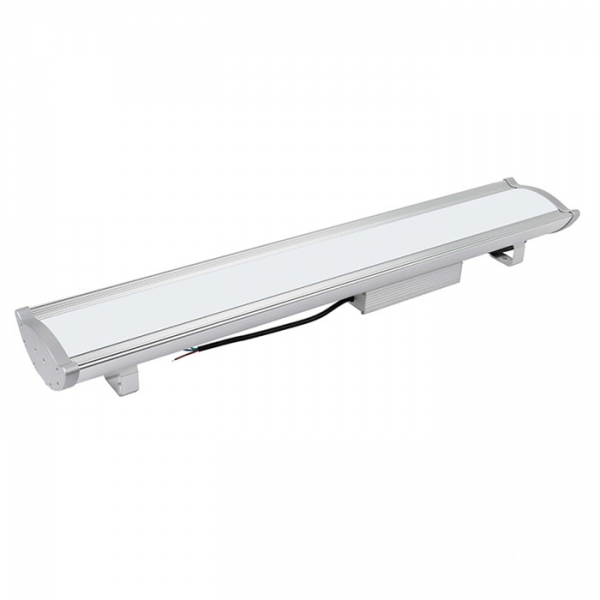

Premium T600

Premium T600 LED Linear High Bay fixtures are designed to efficiently light any large interior space with 12 to 40 feet height. The IP66 rating and UL wet listing makes them extremely versatile interior LED fixtures. Directly replacing 175W to 600W HID high-bays they are ideal for big box retail, warehousing, gymnasiums, ice rinks and manufacturing as well as a variety of specialty applications.


PRODUCT INFORMATION & DOWNLOADS

Product Information

Features

►  High efficacy of 130-140 lm/W
►  DLC V4.4 qualified, premium classification
►  Low glare rating and CRI of more than 80
►  Integrally formed 6063 aluminum alloy heat sink
►  Utilize high-quality LG SMD LEDs and MEAN WELL driver
►  Available in 2-, 3-, 4-, and 5-foot lengths
►  1-10V dimming option
►  IP66 rated, UL wet listed, designed for easy cleaning
►  5 years warranty


Specifications

Watts Model# Lumen Replaces Dimensions* Weight
60 W T6000660W 7800 lm 175 W 600 x 166 x 77 mm 3.6 kg
80 W T6000680W 10400 lm 200 W 600 x 166 x 77 mm 3.6 kg
100 W T60009100W 13000 lm 250 W 900 x 166 x 77 mm 5.1 kg
120 W T60009120W 15600 lm 300 W 900 x 166 x 77 mm 5.2 kg
120 W T60012120W 15600 lm 300 W 1200 x 166 x 77 mm 6.5 kg
160 W T60012160W 20800 lm 400 W 1200 x 166 x 77 mm 6.5 kg
200 W T60015200W 26000 lm 600 W 1500 x 166 x 77 mm 7.7 kg


Lumen Efficacy 130 lm/W
Input Voltage 100-277 VAC
CCT 4000K / 5000K
CRI >80
Beam Angle 120°
Rated Life 50000 hours
Working Temperature -30°C to +55°C
Warranty 5 Years


Notes: * Height is only for aluminum alloy shell.


Driver and Control Options

1-10V Dimming Driver
EM Backup Power Supply
Microwave Motion Sensor


Mounting Options

Cable-suspended mount or direct mount


Certificates

CE, RoHS, SAA, FCC, cULus, DLC
UL File Number: E476514


Applications

Interior high-bay & low-bay, auto dealership, education, municipal,
retail & grocery, industrial, food production and warehouse

Questions about our Products or Prices?

We‘re always excited to hear from you, so feel free to get in touch, we will reply you in 12 hours or less.

TGLIGHTS values your privacy. Your name and information will never be rented or sold. The information you provide is for TGLIGHTS‘s internal use only.

Downloads

  • Premium T600 LED Linear High Bay Spec Sheet

    PDF
  • T60015200W IES file

    IES
  • T60012160W IES file

    IES
  • T60012120W IES file

    IES
  • T60009100W IES file

    IES
  • T6000680W IES file

    IES
