T4000680W

Customers in industrial and warehousing applications are constantly looking for ways to reduce the amount of energy required to light their facilities. The Premium T400 LED Linear Highbay light fixtures are designed to efficiently light any large interior space with 4 to 12 meters height. They can directly replace 175 and 600 W HID high-bays, thereby generating significant energy savings. With a choice of mounting methods, installation is easy and secure.


PRODUCT INFORMATION & DOWNLOADS

Product Information

Features

  High efficacy of 130-140 lm/W
  Low glare rating and CRI of more than 80
  Integrally formed 6063 aluminum alloy heat sink
  Utilize high-quality LG SMD LEDs and MEAN WELL driver
  1-10V dimming option
  IP65 rated, UL wet listed
  5 years warranty


Specifications

Watts 80 W
Model# T4000680W
Lumen 10400 lm
Lumen Efficacy 130 lm/W
Replaces 200 W
Input Voltage 100-277 VAC
CCT 4000K / 5000K
CRI >80
Beam Angle 120°
Dimensions* 600 x 150 x 67 mm
Weight 3.4 kg
Rated Life 50000 hours
Working Temperature -30°C to +55°C
Warranty 5 Years


Notes: * Height is only for aluminum alloy shell.

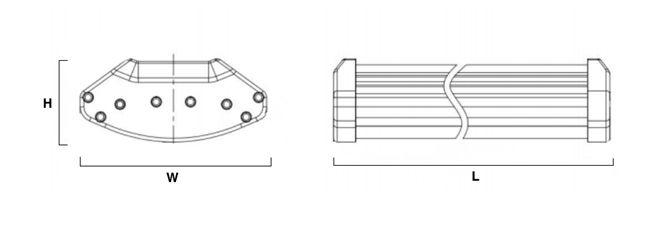

Dimensions



Length: 600 mm
Width: 150 mm
Height: 67 mm


Photometrics




Driver and Control Options

1-10V Dimming Driver
EM Backup Power Supply
Microwave Motion Sensor


Mounting Options

Cable-suspended mount or direct mount


Certificates

CE, RoHS, SAA, FCC, cULus
UL File Number: E476514


Applications

Interior high-bay & low-bay, auto dealership, education,
municipal, retail & grocery, industrial & warehouse
