Features
► High efficacy of 135-140 lm/W► DLC V5.1 qualified, premium classification
► Low glare rating and CRI of more than 80
► Integrally formed 6063 aluminum alloy heat sink
► Utilize high-quality Lumileds SMD LEDs and MEAN WELL driver
► 1-10V dimming option
► IP66 rated, UL wet listed, designed for easy cleaning
► 5 years warranty
Specifications
| Watts | 120 W |
| Model# | T60012120W |
| Lumen | 16200 lm |
| Lumen Efficacy | 135 lm/W |
| Replaces | 300 W |
| Input Voltage | 100-277 VAC |
| CCT | 4000K / 5000K |
| CRI | >80 |
| Beam Angle | 120° |
| Dimensions* | 1200 x 166 x 77 mm |
| Weight | 6.5 kg |
| Rated Life | 50000 hours |
| Working Temperature | -30°C to +55°C |
| Warranty | 5 Years |
Notes: * Height is only for aluminum alloy shell.
Dimensions
Length: 1200 mm
Width: 166 mm
Height: 77 mm

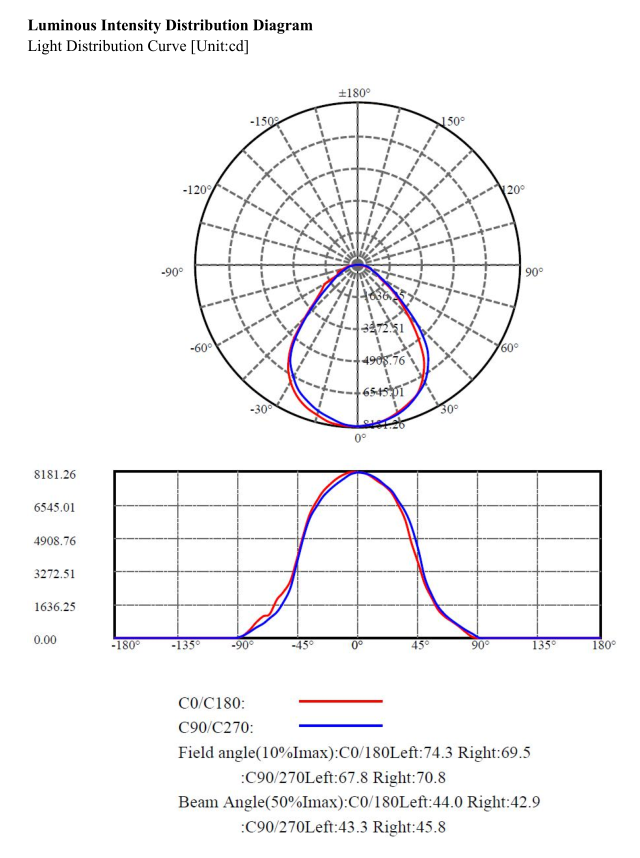

Photometrics
Driver and Control Options
1-10V Dimming Driver
EM Backup Power Supply
Microwave Motion Sensor
Mounting Options
Cable-suspended mount or direct mount
Certificates
CE, RoHS, SAA, FCC, cULus, DLC
UL File Number: E476514
Applications
Interior high-bay & low-bay, auto dealership, education, municipal,
retail & grocery, industrial, food production and warehouse
