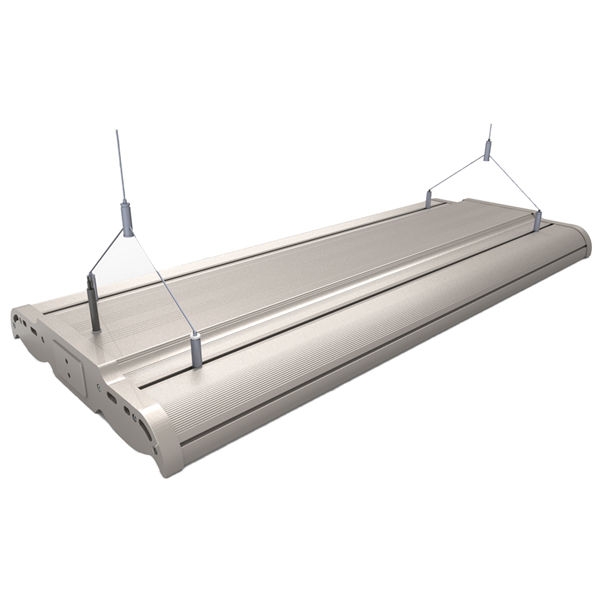

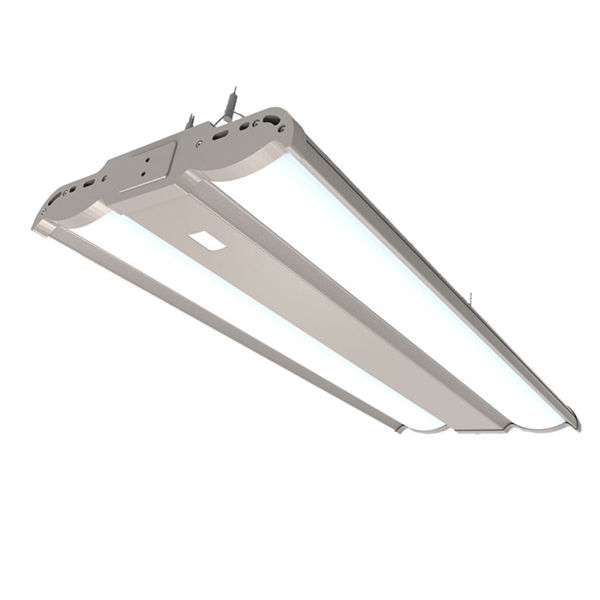

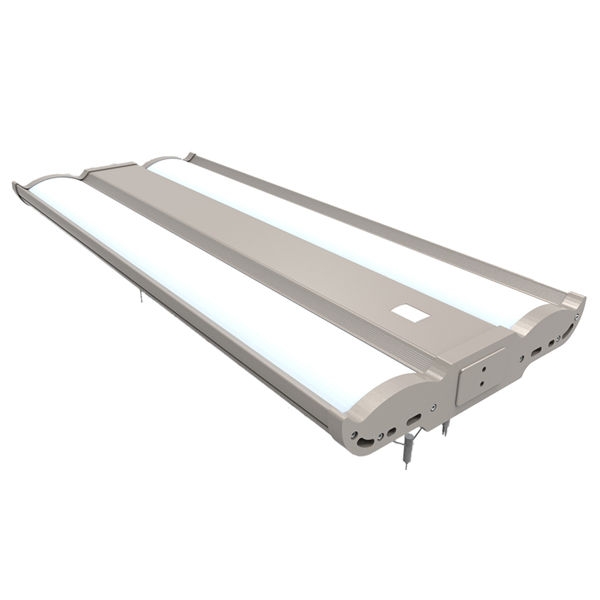

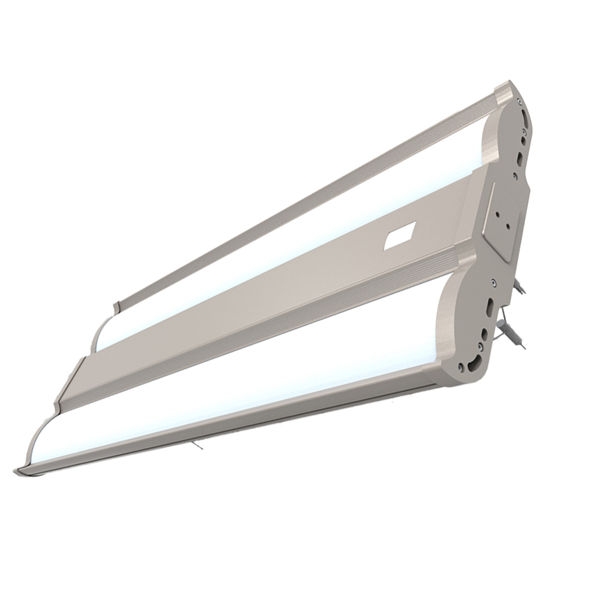

T800

The T800 LED luminaire represents the best of our LED technologies and our most popular high bay product. The result is a high-performance, quality, configurable LED luminaire that is an ideal one-for-one replacement of conventional high bay systems such as HID and fluorescent. Applications include warehousing, light manufacturing and other large indoor spaces with mounting heights up to 50‘ and ambient temperatures up to 122℉ (50℃).

It is available with integrated controls and sensor options (occupancy & dimming) to reduce energy costs and help extend the life of the fixture.


PRODUCT INFORMATION & DOWNLOADS

Product Information

Features

►  High efficacy of 130-140 lm/W
►  DLC V4.4 qualified, premium classification
►  Low glare rating and CRI of more than 80
►  Utilize high-quality Lumileds SMD LEDs and MEAN WELL driver
►  Integrated controls and sensor options (occupancy & dimming)
►  Available in 2-, 3-, and 4-foot lengths
►  5 years warranty



Specifications

Watts Model# Lumen Replaces Dimensions Weight
150 W T80006150W 20250 lm 400 W 600 x 375 x 66 mm 4.7 kg
200 W T80009200W 27000 lm 600 W 900 x 375 x 66 mm 6.3 kg
240 W T80009240W 32400 lm 700 W 900 x 375 x 66 mm 6.4 kg
320 W T80012320W 43200 lm 1000 W 1200 x 375 x 66 mm 8.8 kg


Lumen Efficacy 135 lm/W
Input Voltage 100-277 VAC
CCT 4000K / 5000K
CRI >80
Beam Angle 120°
Rated Life 50000 hours
Working Temperature -30°C to +50°C
Warranty 5 Years



Driver and Control Options

1-10V Dimming Driver
EM Backup Power Supply
Microwave Motion Sensor


Mounting Options

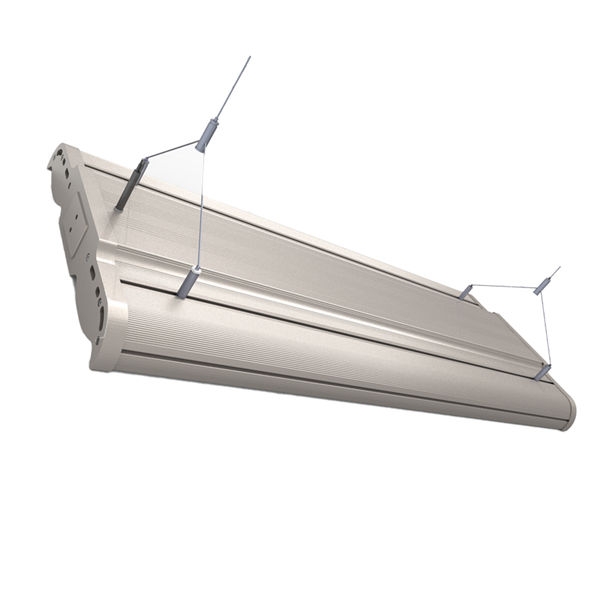

Cable-suspended mount or direct mount



Certificates

CE, RoHS, FCC, cULus, DLC
UL File Number: E476514


Applications

Education, Hospitality, Manufacturing, Offices and Banks, Retail,
Sports and Recreation, Transportation, Warehouses
