T80006150W-HV

The T800 LED luminaire represents the best of our LED technologies and our most popular high bay product. The result is a high-performance, quality, configurable LED luminaire that is an ideal one-for-one replacement of conventional high bay systems such as HID and fluorescent. Applications include warehousing, light manufacturing and other large indoor spaces with mounting heights up to 50‘ and ambient temperatures up to 122℉ (50℃).

PRODUCT INFORMATION & DOWNLOADS

Product Information

Features

►  High efficacy of 130-140 lm/W
►  DLC V5.0 qualified, premium classification
►  Low glare rating and CRI of more than 80
►  Utilize high-quality Lumileds SMD LEDs and Inventronics driver
►  Integrated controls and sensor options (occupancy & dimming)
►  5 years warranty

Specifications

Watts 150 W
Model# T80006150W-HV
Lumen 20250 lm
Lumen Efficacy 135 lm/W
Replaces 400 W
Input Voltage 277-480 VAC
CCT 4000K / 5000K
CRI >80
Beam Angle 120°
Dimensions 600 x 375 x 66 mm
Weight 4.7 kg
Rated Life 50000 hours
Working Temperature -30°C to +50°C
Warranty 5 Years



Dimensions



Length: 600 mm
Width: 375 mm
Height: 66 mm

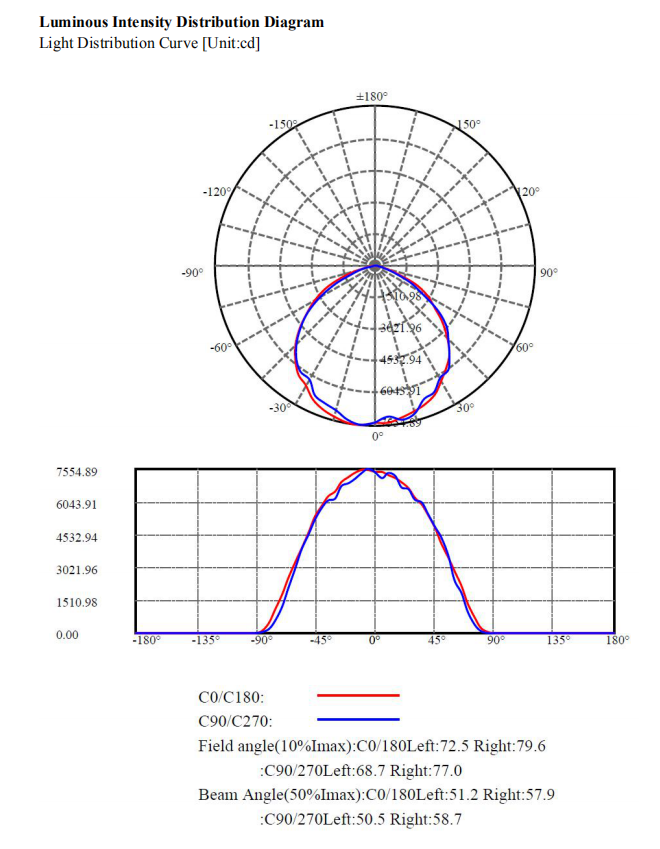

Photometrics




Mounting Options

Cable-suspended mount or direct mount


Certificates

CE, RoHS, FCC, cULus, DLC
UL File Number: E476514


Applications

Education, Hospitality, Manufacturing, Offices and Banks, Retail,
Sports and Recreation, Transportation, Warehouses

Questions about our Products or Prices?

We‘re always excited to hear from you, so feel free to get in touch, we will reply you in 12 hours or less.

TGLIGHTS values your privacy. Your name and information will never be rented or sold. The information you provide is for TGLIGHTS‘s internal use only.

Downloads

  • T800 High Voltage LED Linear High Bay Spec Sheet T80006150W-HV

    PDF
  • T80006150W-HV IES file

    IES
