T80009240W

The T800 LED luminaire represents the best of our LED technologies and our most popular high bay product. The result is a high-performance, quality, configurable LED luminaire that is an ideal one-for-one replacement of conventional high bay systems such as HID and fluorescent. Applications include warehousing, light manufacturing and other large indoor spaces with mounting heights up to 50‘ and ambient temperatures up to 122℉ (50℃).

It is available with integrated controls and sensor options (occupancy & dimming) to reduce energy costs and help extend the life of the fixture.


PRODUCT INFORMATION & DOWNLOADS

Product Information

Features

►  High efficacy of 130-140 lm/W
►  DLC V5.0 qualified, premium classification
►  Low glare rating and CRI of more than 80
►  Utilize high-quality Lumileds SMD LEDs and MEAN WELL driver
►  Integrated controls and sensor options (occupancy & dimming)
►  5 years warranty

Specifications

Watts 240 W
Model# T80009240W
Lumen 32400 lm
Lumen Efficacy 135 lm/W
Replaces 700 W
Input Voltage 100-277 VAC
CCT 4000K / 5000K
CRI >80
Beam Angle 120°
Dimensions 900 x 375 x 66 mm
Weight 6.4 kg
Rated Life 50000 hours
Working Temperature -30°C to +50°C
Warranty 5 Years


Dimensions



Length: 900 mm
Width: 375 mm
Height: 66 mm

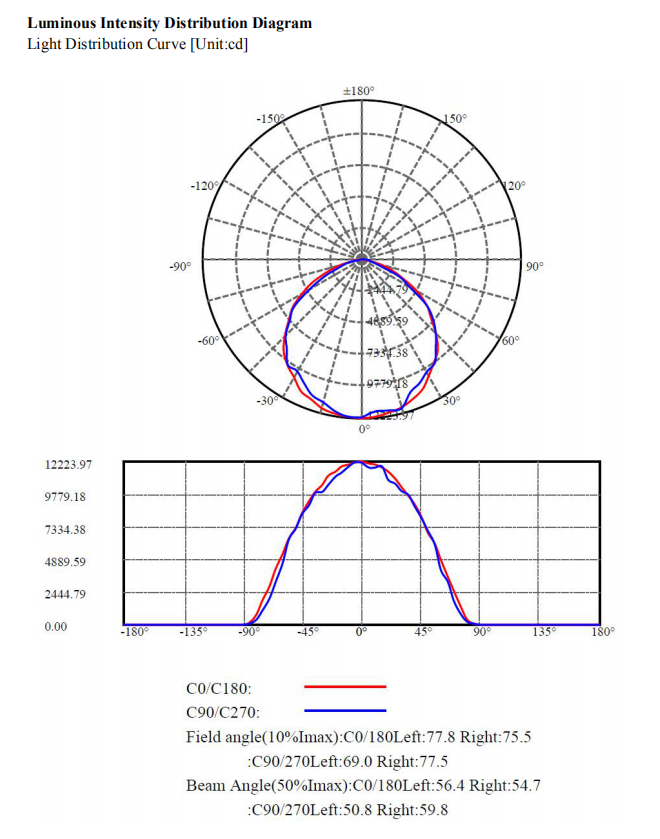

Photometrics




Driver and Control Options

1-10V Dimming Driver
EM Backup Power Supply
Microwave Motion Sensor


Mounting Options

Cable-suspended mount or direct mount


Certificates

CE, RoHS, FCC, cULus, DLC
UL File Number: E476514


Applications

Education, Hospitality, Manufacturing, Offices and Banks, Retail,
Sports and Recreation, Transportation, Warehouses
