TG-LD15150W

The Line D LED Linear High Bay offers 4 different optical patterns, which enable you to handle the most demanding indoor universal lighting situations. With a modular design, this stylish luminaire provides improved illumination performance while reducing energy consumption.


PRODUCT INFORMATION & DOWNLOADS

Product Information

Features

  DLC V4.4 qualified
  Low glare rating
  Modular design, built-in power supply design
  Integrally formed 6063 aluminum alloy heat sink
  Utilize high-quality LG SMD LEDs and Inventronics driver
  Wide variety of optics
  0-10V Dimming standard
  IP54 rated, UL damp listed, designed for easy cleaning
  5 years warranty


Specifications

Watts 150 W
Model# TG-LD15150W
Lumen 17250 lm
Lumen Efficacy 115 lm/W
Replaces 600 W
Input Voltage 100-277 VAC
CCT 4000K / 5000K
CRI >70
Beam Angles 30°, 60°, 90°, Double Asymmetric
Dimensions 1500 x 140 x 110 mm
Weight 8.0 kg
Rated Life 50000 hours
Working Temperature -30°C to +45°C
Warranty 5 Years

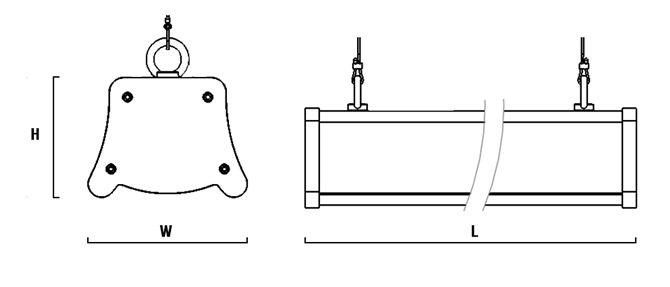

Dimensions



Length: 1500 mm
Width: 140 mm
Height: 110 mm

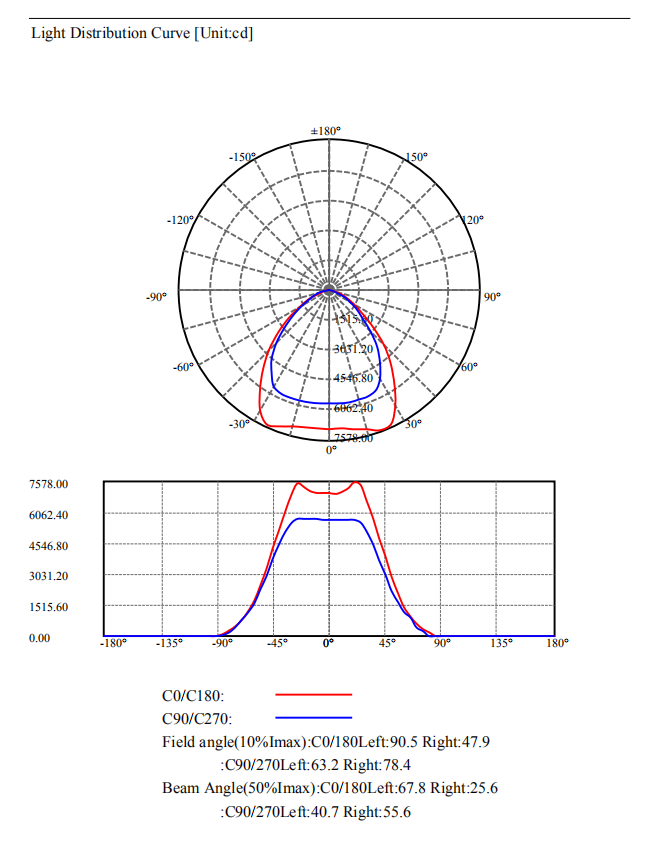

Photometrics




Driver and Control Options

0-10V Dimming Driver
EM Backup Power Supply
Microwave Motion Sensor


Mounting

Cable-suspended mount


Certificates

CE, RoHS, FCC, cULus, DLC
UL File Number: E476514


Applications

Interior high-bay & low-bay,
auto dealership, education,
municipal, retail & grocery,
industrial, food production and warehouse,
indoor sports halls, exhibition halls

Questions about our Products or Prices?

We‘re always excited to hear from you, so feel free to get in touch, we will reply you in 12 hours or less.

TGLIGHTS values your privacy. Your name and information will never be rented or sold. The information you provide is for TGLIGHTS‘s internal use only.

Downloads

  • Line D LED Linear High Bay Spec Sheet TG-LD15150W

    PDF
  • TG-LD15150W IES file (90°)

    IES
