T2001260W

The Premium T200 LED Low Bay light fixtures are designed to efficiently light any large interior space with 3 to 6 meters height. They are excellent replacements for up to 250W metal halide fixtures as well as traditional fluorescent T5 and T8 fixtures.


PRODUCT INFORMATION & DOWNLOADS

Product Information

Features

►  High efficacy of 130-140 lm/W
►  Low glare rating and CRI of more than 80
►  Low profile, lightweight design
►  Integrally formed 6063 aluminum alloy heat sink
►  Utilize high-quality SMD LEDs and MEAN WELL driver
►  1-10V dimming option
►  IP65 rated, designed for easy cleaning
►  5 years warranty


Specifications

Watts 60 W
Model# T2001260W
Lumen 7800 lm
Lumen Efficacy 130 lm/W
Replaces 200 W
Input Voltage 100-277 VAC
CCT 4000K / 5000K
CRI >80
Beam Angles 120°
Dimensions* 1200 x 130  x 51 mm
Weight 2.6 kg
Rated Life 50000 hours
Working Temperature -20°C to +45°C
Warranty 5 Years


Notes: * Height is only for aluminum alloy shell.

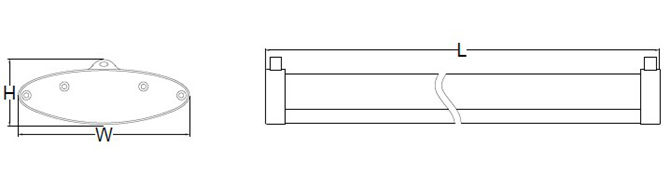

Dimensions




Length: 1200 mm
Width: 130 mm
Height: 51 mm



Driver Options

1-10V Dimming Driver


Mounting Options

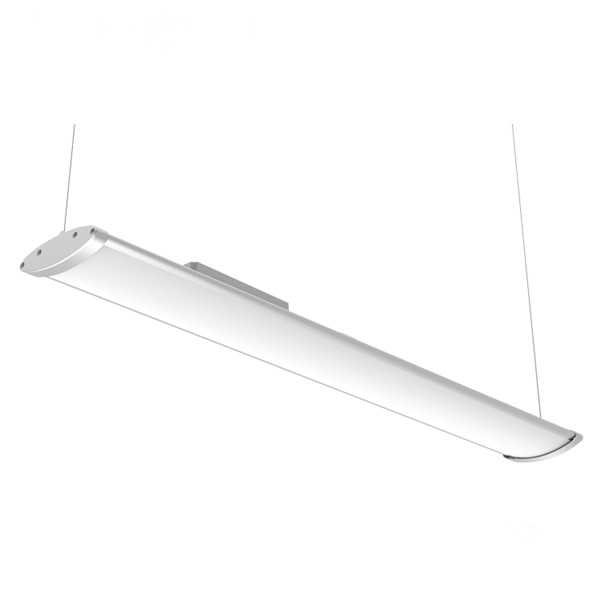

Cable-suspended mount or direct mount


Certificates

CE, RoHS, SAA


Applications

Interior low-bay, auto dealership, education, municipal,
retail & grocery, industrial, food production and warehouse

Questions about our Products or Prices?

We‘re always excited to hear from you, so feel free to get in touch, we will reply you in 12 hours or less.

TGLIGHTS values your privacy. Your name and information will never be rented or sold. The information you provide is for TGLIGHTS‘s internal use only.

Downloads

  • T2001260W IES file

    IES
