Features
► High efficacy of 130 lm/W► 100W 150W 200W 240W 300W

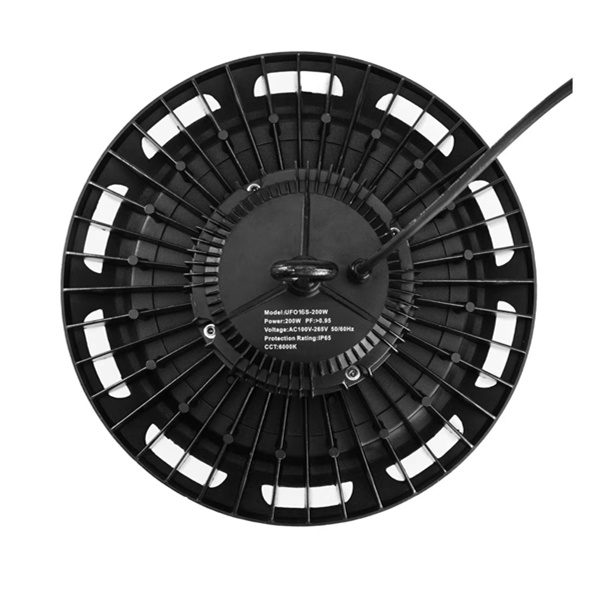

► Di-cast aluminum heat sink
► Compact, lightweight design
► 1-10V dimming option
► 60°, 90° and 120° beam angles
► 2 years warranty
Specifications
| Watts | Model# | Lumen | Replaces | Dimensions | Weight |
| 100 W | TG-RHB16S100W | 13000 lm | 250 W | 310 mm dia x 167 mm high | 2.6 kg |
| 150 W | TG-RHB16S150W | 19500 lm | 400 W | 360 mm dia x 186 mm high | 3.05 kg |
| 200 W | TG-RHB16S200W | 26000 lm | 400 W | 410 mm dia x 187 mm high | 4.15 kg |
| 240 W | TG-RHB16S240W | 31200 lm | 700 W | 410 mm dia x 187 mm high | 5.6 kg |
| 300 W | TG-RHB16S300W | 39000 lm | 1000 W | 410 mm dia x 187 mm high | 5.6 kg |
| Lumen Efficacy | 130 lm/W |
| Input Voltage | 100-277 VAC |
| CCT | 4000K / 5000K |
| CRI | >70 |
| Beam Angles | 60°, 90°, 120° |
| Rated Life | 30000 hours |
| Working Temperature | -20°C to +45°C |
| Warranty | 2 Years |
Driver Options
1-10V Dimming Driver
Mounting Options

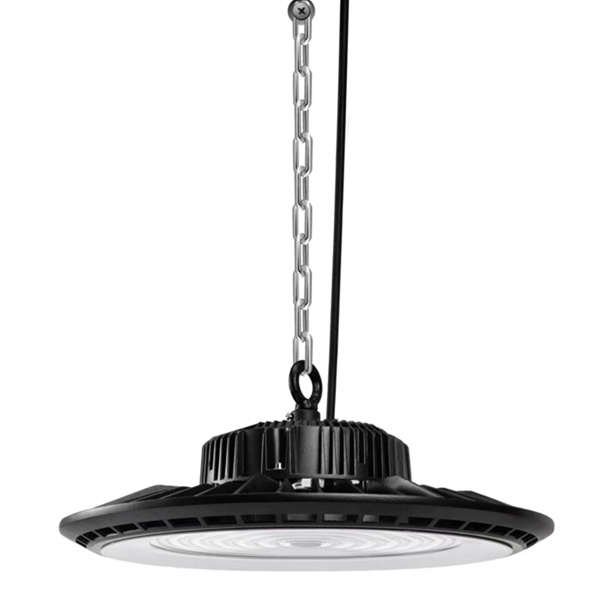

Hook mount or bracket mount
Certificates
CE, RoHS
Applications
Interior high-bay & low-bay, auto dealership, municipal,
retail & grocery, industrial and warehouse, indoor sports halls, exhibition halls
