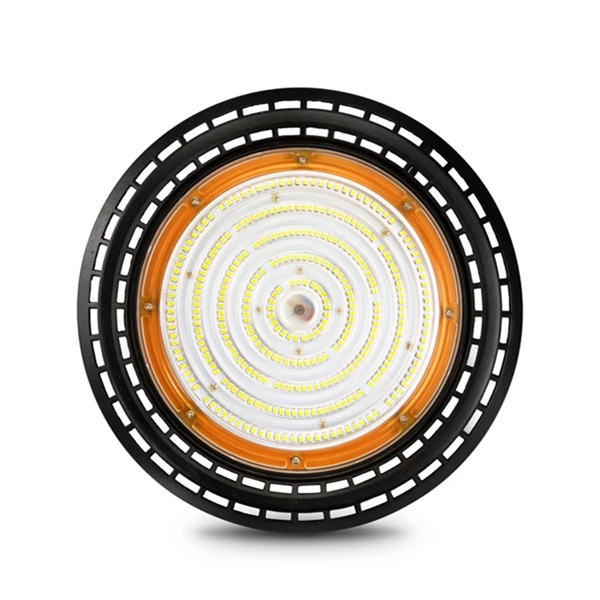

RHB17S Series

Profiled aluminum housing and screw locked ends

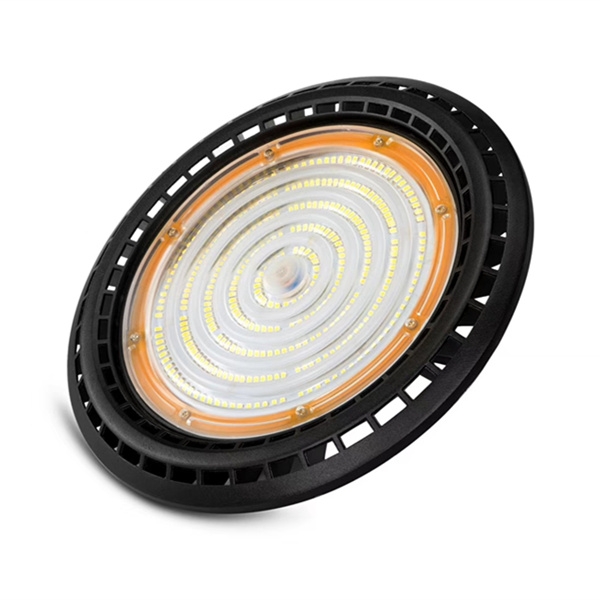

Tempered frosted PC lens, low glare
Gas-tight silicon rubber seal made for wet locations

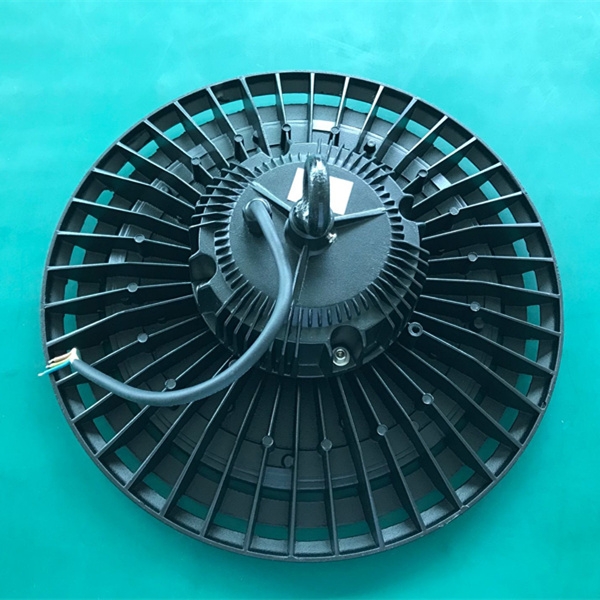

Aircraft-grade 6063 aluminum housing, quick heat sink and durable
Excellent vibration & shock resistance


PRODUCT INFORMATION & DOWNLOADS

Product Information

Features

►  High efficacy of 140 lm/W

►  50W 100W 150W 200W 240W
►  Di-cast aluminum heat sink
►  Compact, lightweight design
►  1-10V dimming option
►  60°, 90° and 120° beam angles
►  2 years warranty


Specifications

Watts Model# Lumen Replaces Dimensions Weight
50 W TG-RHB17S050W 7000 lm 150 W 230 mm dia x 155 mm high 1.55 kg
100 W TG-RHB17S100W 14000 lm 250 W 310 mm dia x 167 mm high 2.75 kg
150 W TG-RHB17S150W 21000 lm 400 W 360 mm dia x 180 mm high 3.4 kg
200 W TG-RHB17S200W 28000 lm 400 W 410 mm dia x 185 mm high 4.6 kg
240 W TG-RHB17S240W 33600 lm 700 W 410 mm dia x 185 mm high 4.85kg


Lumen Efficacy 140 lm/W
Input Voltage 100-277 VAC
CCT 4000K / 5000K
CRI >70
Beam Angles 60°, 90°, 120°
Rated Life 50000 hours
Working Temperature -20°C to +45°C
Warranty 2 Years


Driver Options

1-10V Dimming Driver


Mounting Options

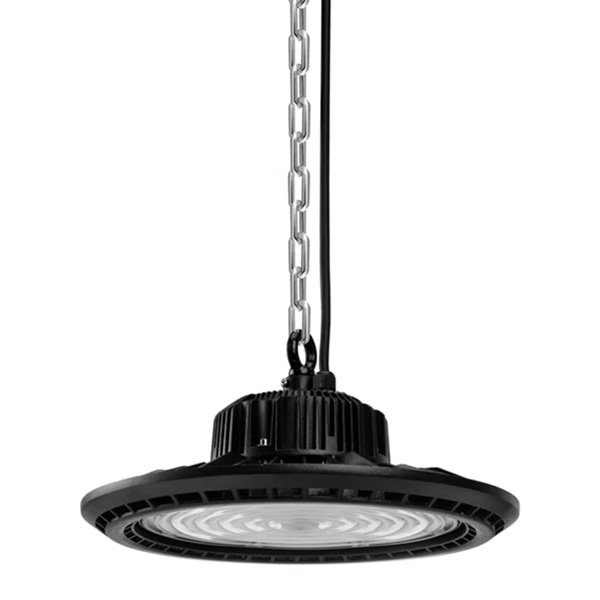

Hook mount or bracket mount


Certificates

CE, RoHS


Applications

Interior high-bay & low-bay, auto dealership, municipal,
retail & grocery, industrial and warehouse, indoor sports halls, exhibition halls
