Features
► High efficacy of 130 lm/W► DLC 4.4 Premium qualified
► Di-cast aluminum heat sink
► Compact, lightweight design
► 1-10V dimming option
► 60°, 90° and 120° beam angles
► 5 years warranty
Specifications
| Watts | 160 W |
| Model# | TG-UHB120160W |
| Lumen | 20800 lm |
| Lumen Efficacy | 130 lm/W |
| Replaces | 400 W |
| Input Voltage | 100-277 VAC |
| CCT | 4000K / 5000K |
| CRI | >70 |
| Beam Angles | 60°, 90°, 120° |
| Dimensions | 325 mm dia x 187 mm high |
| Weight | 3.6 kg |
| Rated Life | 50000 hours |
| Working Temperature | -30°C to +55°C |
| Warranty | 5 Years |
Dimensions
Diameter: 325 mm
Height: 187 mm

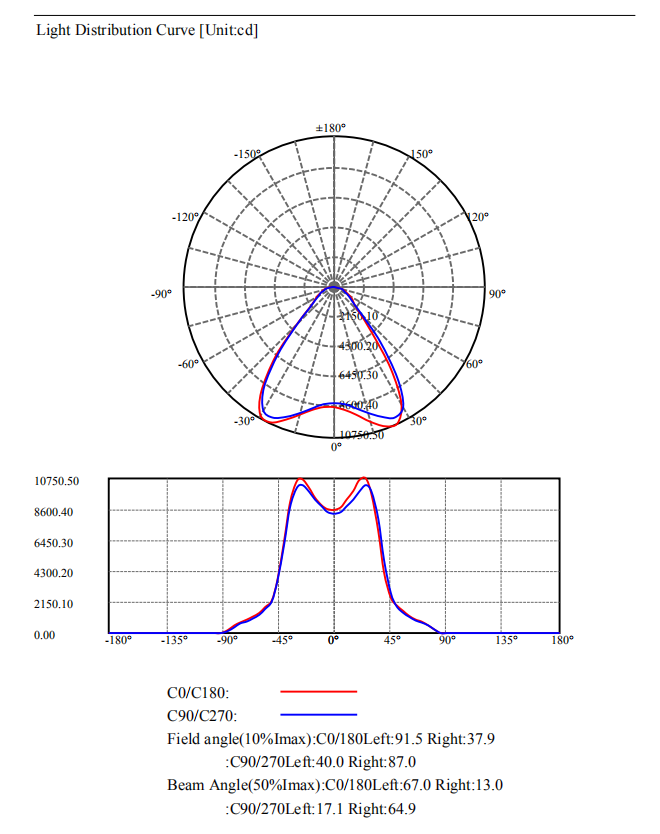

Photometrics
Driver Options
1-10V Dimming Driver
Mounting Options
Hook mount or bracket mount
Certificates
CE, RoHS, FCC, cULus, DLC
UL File Number: E476514
Applications
Interior high-bay & low-bay, auto dealership, municipal,
retail & grocery, industrial and warehouse, indoor sports halls, exhibition halls
