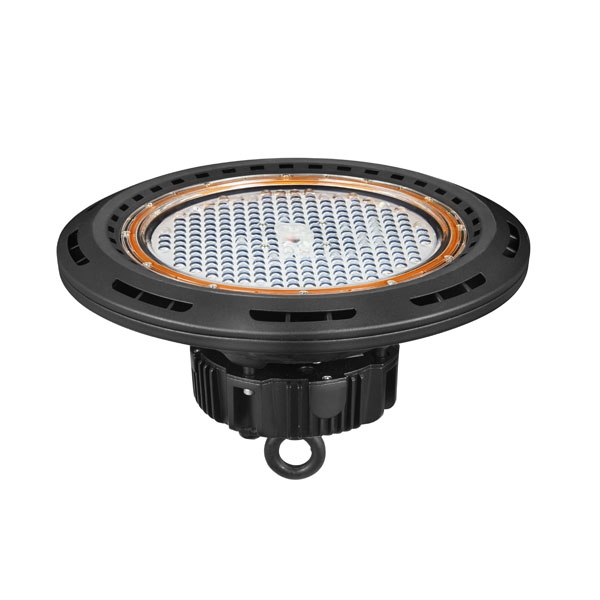

UHB Series

Offering 3 differrent beam angles, UHB Series LED Round High Bay luminaires are effective indoor area lighting systems for multiple applications.
They are low profile, durable, and designed for long life and low maintenance.


PRODUCT INFORMATION & DOWNLOADS

Product Information

Features

►  High efficacy of 130 lm/W

►  DLC 4.4 Premium qualified

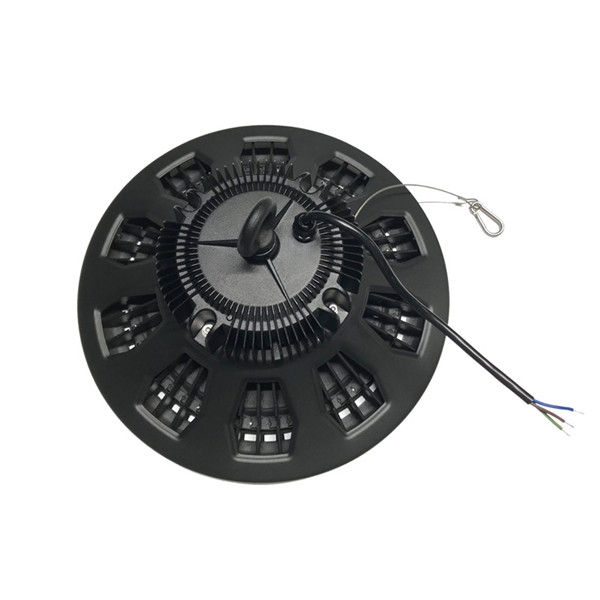

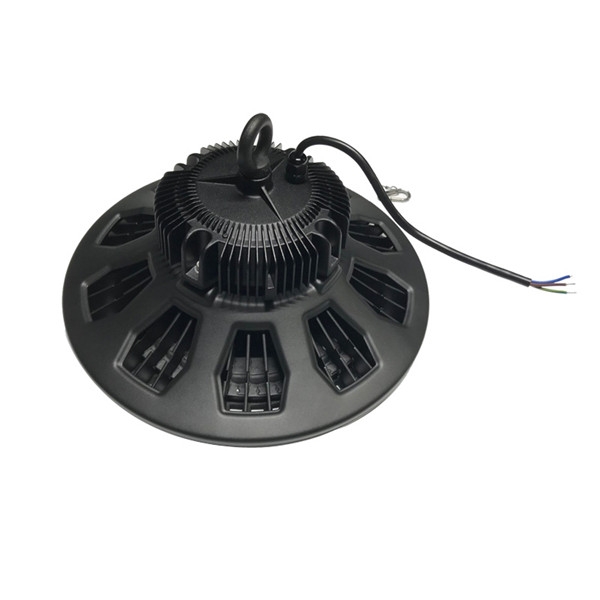

►  Di-cast aluminum heat sink
►  Compact, lightweight design
►  1-10V dimming option
►  60°, 90° and 120° beam angles
►  5 years warranty


Specifications

Watts Model# Lumen Replaces Dimensions Weight
100 W TG-UHB080100W 13000 lm 250 W 260 mm dia x 177 mm high 2.5 kg
160 W TG-UHB120160W 20800 lm 400 W 325 mm dia x 187 mm high 3.6 kg
240 W TG-UHB200240W 31200 lm 700 W 400 mm dia x 203 mm high 5.3 kg


Lumen Efficacy 130 lm/W
Input Voltage 100-277 VAC
CCT 4000K / 5000K
CRI >70
Beam Angles 60°, 90°, 120°
Rated Life 50000 hours
Working Temperature -30°C to +55°C
Warranty 5 Years


Driver Options

1-10V Dimming Driver


Mounting Options

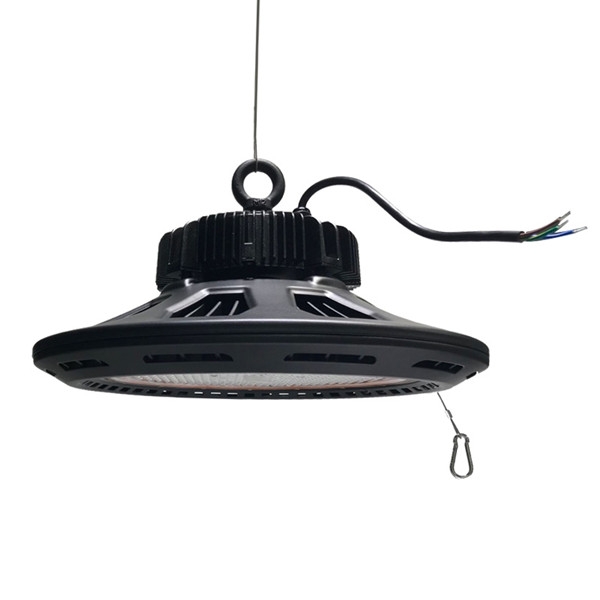

Hook mount or bracket mount


Certificates

CE, RoHS, FCC, cULus, DLC
UL File Number: E476514


Applications

Interior high-bay & low-bay, auto dealership, municipal,
retail & grocery, industrial and warehouse, indoor sports halls, exhibition halls

Questions about our Products or Prices?

We‘re always excited to hear from you, so feel free to get in touch, we will reply you in 12 hours or less.

TGLIGHTS values your privacy. Your name and information will never be rented or sold. The information you provide is for TGLIGHTS‘s internal use only.

Downloads

  • UHB Series LED Round High Bay Spec Sheet

    PDF
  • TG-UHB200240W IES file (120°)

    IES
  • TG-UHB200240W IES file (90°)

    IES
  • TG-UHB200240W IES file (60°)

    IES
  • TG-UHB120160W IES file (90°)

    IES
  • TG-UHB080100W IES file (90°)

    IES
