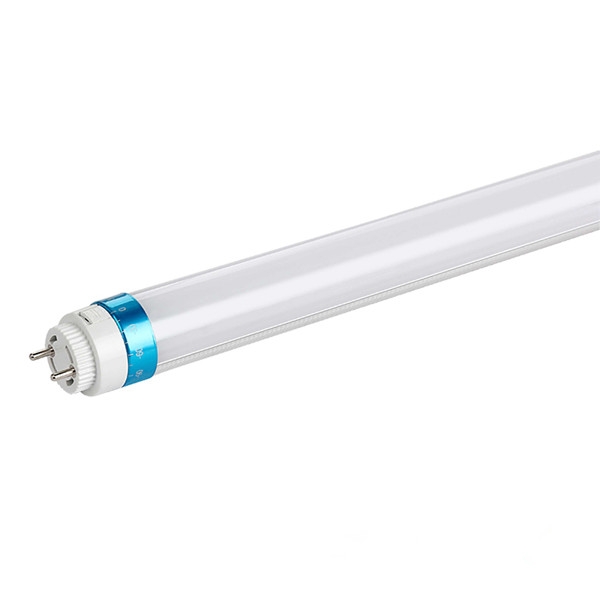

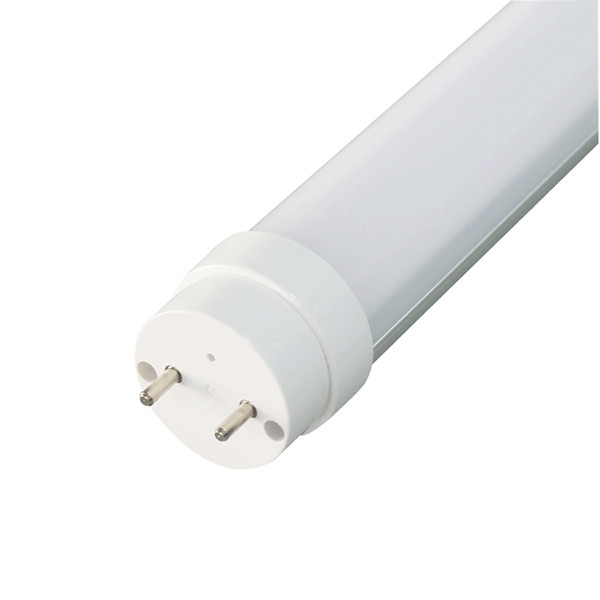

T1001532KCR

High Lumen LED T8 Tubes are for direct replacement of T8 fluorescent lamps. They offer lumen efficacy as high as 160lm/W and CRI>80 in an environmently friendly way. Long lifetime and excellent lumen maintenance minimise the maintenance costs of users at the fullest extent.


PRODUCT INFORMATION & DOWNLOADS

Product Information

Features

►  High efficacy of 150-160 lm/W
►  CRI of more than 80
►  Constructed with aluminum alloy heat sink and aluminum PCB
►  Utilize 100% isolated driver with Japan-Rubycon capacitors
►  50,000-hour rated life
►  5 years warranty


Specifications

Watts 30 W
Model# T1001532KCR
Lumen 4500 lm
Lumen Efficacy 150 lm/W
Replaces 58 W
Input Voltage 100-240 VAC
CCT 3000/4000/5000/6000 K
CRI >80
Lens Diffuse PC(milky or clear)
Dimensions 26 mm dia x 1500 mm long
Weight 472 g
Rated Life 50000 hours
Working Temperature -20°C to +45°C
Warranty 5 Years

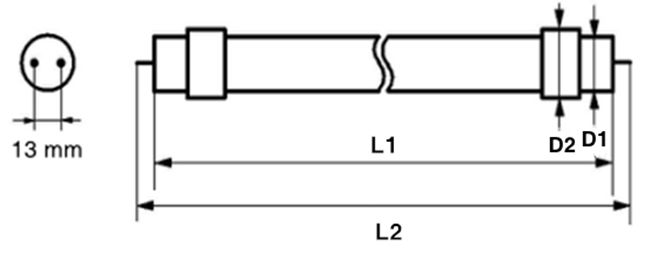

Dimensions




D1: 26 mm
D2: 28 mm
L1: 1498 mm
L2: 1512 mm

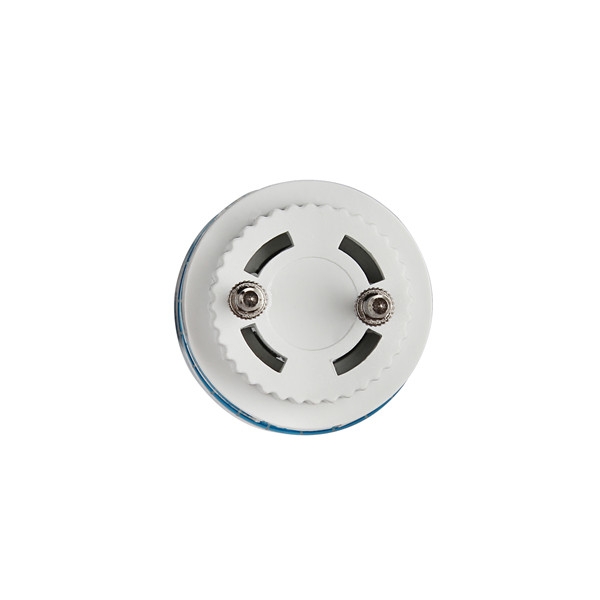

End Cap Options

Rotatable or non-rotatable


Certificates

CE, RoHS, TUV, SAA, C-Tick


Applications

Residential, education, office, healthcare, restaurant,
warehouse, retail & grocery
