WW01 Series

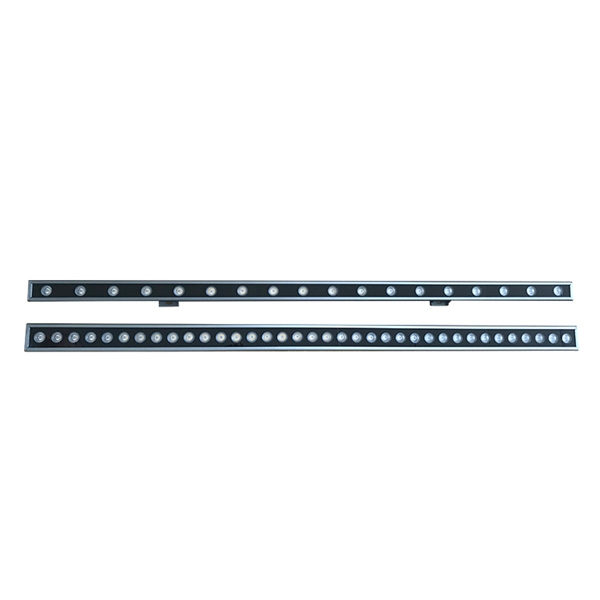

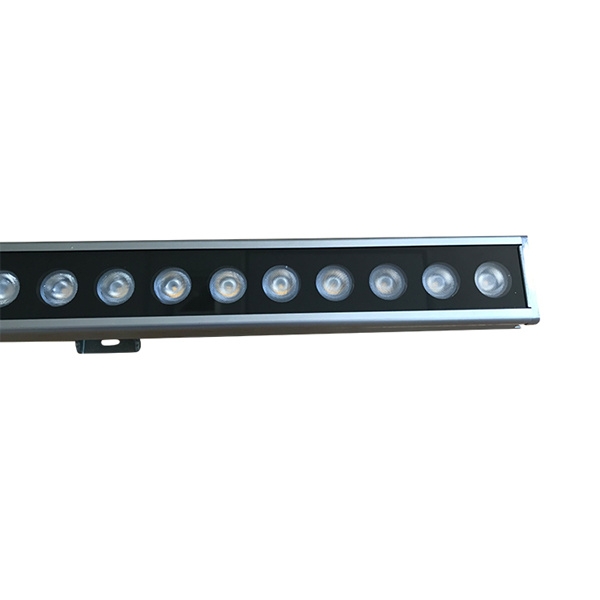

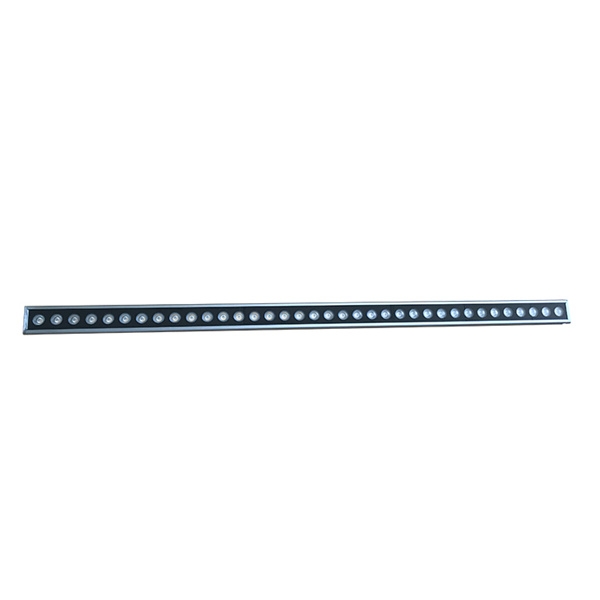

LED Wall Washer is a 20"/40" linear type light with 24VDC rated volatage use. It has 12 to 36 white - 1.0 watt Epistar LEDs to produce bright and vivid lighting on walls, buildings, ceiling and signs. This light fixture can project light up to 50 feet. This light is encased in an IP65 water-resistant aluminum housing. Tempered glass and stainless fasteners give this light long lasting outdoor use. This light can be dimmed by any 24VDC Constant Voltage PWM Dimmer.


Product Information


►  Standard 20"/40" length

►  24VDC rated volatage use
►  P65 water-resistant aluminum housing
►  Energy saving, low power consumption, long life expectancy

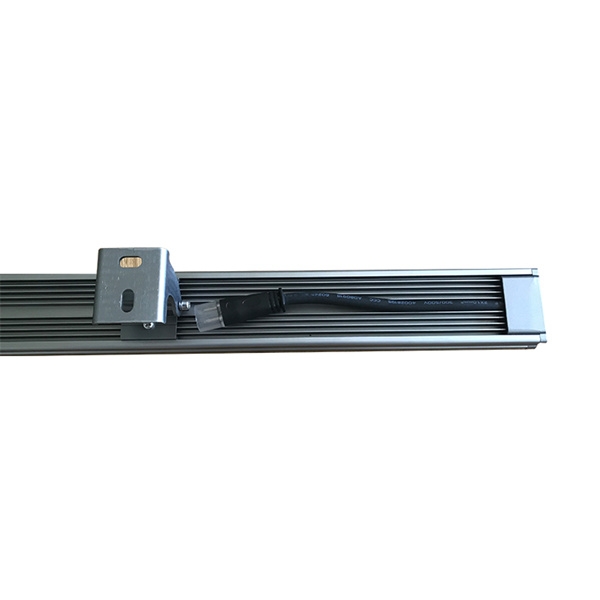

►  Male and female waterproof connection lead wires included
►  Non-submersible, CE and RoHS approved


Watts Model# Lumen Replaces Dimensions Weight
12 W TG-WW01-12W 1320 lm 36 W 505  x 37 x 29 mm 0.65 kg
18 W TG-WW01-18W 1980 lm 50 W 1010  x 37 x 29 mm 1.15 kg
24 W TG-WW01-24W 2640 lm 75 W 1010  x 43 x 29 mm 1.3 kg
36 W TG-WW01-36W 3960 lm 100 W 1010  x 48 x 29 mm 1.45 kg

Lumen Efficacy 110 lm/W
Input Voltage 24 VDC
CCT 3000K / 4000K / 5000K / 6000K
CRI >70
Beam Angle 30°
Rated Life 30000 hours
Working Temperature -20°C to +45°C
Warranty 2 Years

Mounting Options

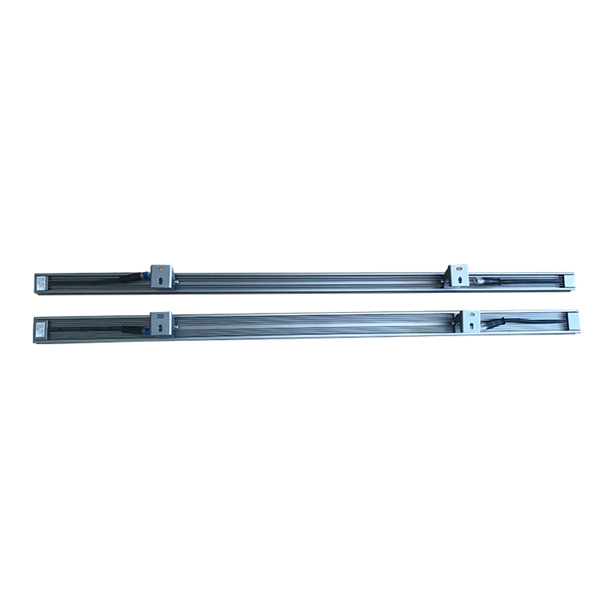

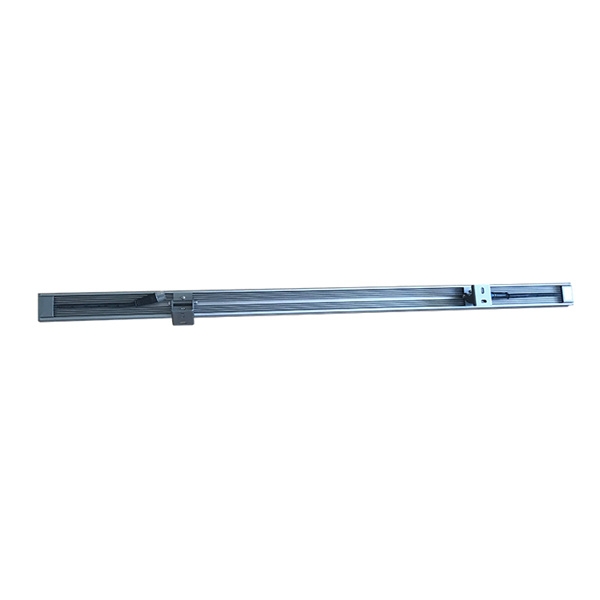

Bracket mount




To project light on walls, buildings, ceiling and signs
