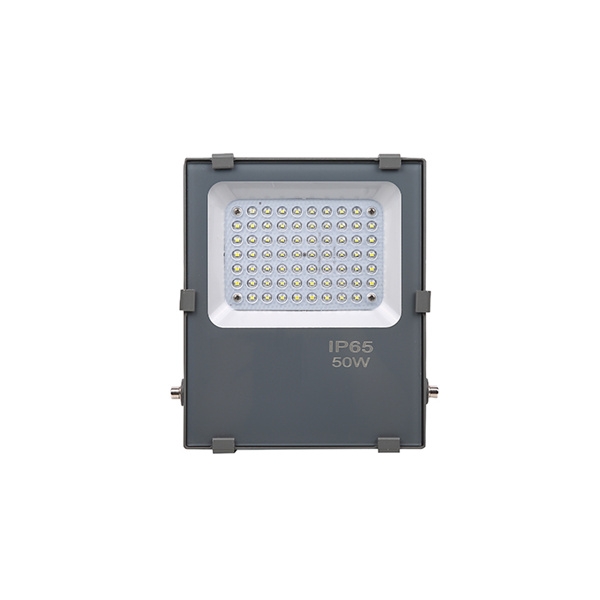

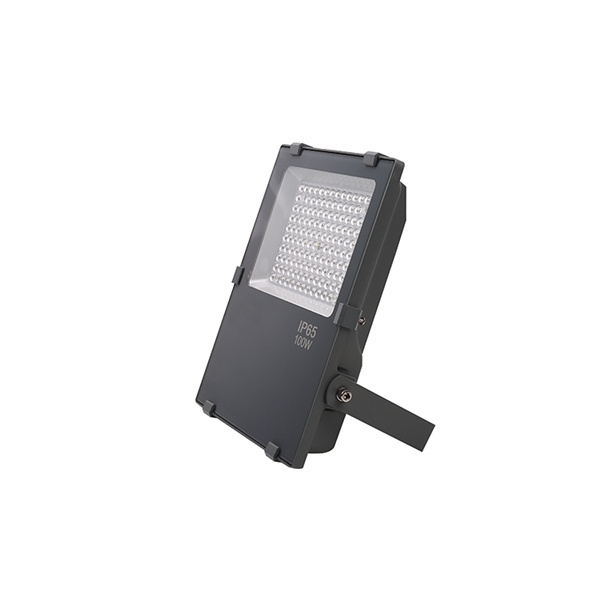

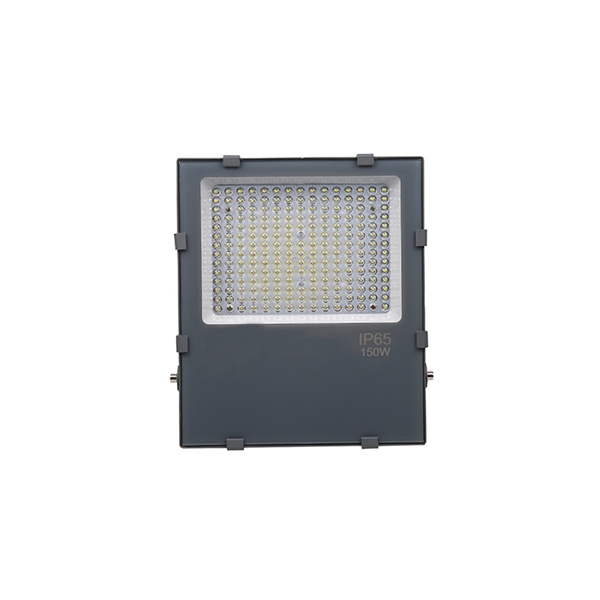

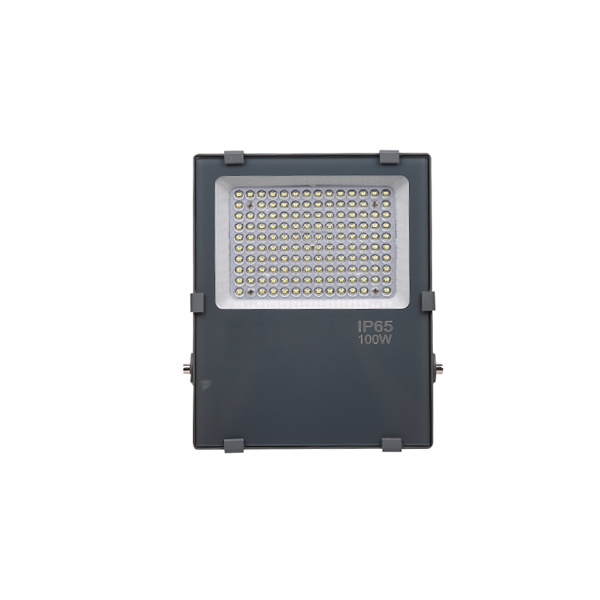

FL12S Series

LED flood lights are perfect for large open spaces that require lighting that provides great distribution and high lumen output. LED flood lights provide flexible lighting options where the lights can be mounted on poles, walls, roof tops or even on the ground. Beam angles and optics allow for narrow focused beams to large flood patterns to light up large areas of outdoor space.

PRODUCT INFORMATION & DOWNLOADS

Product Information

Features

►  Instant on/off

►  No humming or flickering
►  Unique design with anodized housing
►  Maintenance free operation
►  Cool beam - Does not produce Ultra Violet (UV) light or IR
►  Environmentally friendly fully recyclable no mercury or other hazardous materials


Specifications

Watts Model# Lumen Replaces Dimensions Weight
20 W TG-FL12S-020W 2200 lm 50 W 200  x 166 x 35 mm 1.2 kg
30 W TG-FL12S-030W 3300 lm 100 W 200  x 166 x 35 mm 1.25 kg
50 W TG-FL12S-050W 5500 lm 150 W 265  x 220 x 45 mm 1.8 kg
100 W TG-FL12S-100W 11000 lm 250 W 300  x 245 x 50 mm 2.6 kg
150 W TG-FL12S-150W 16500 lm 400 W 345  x 295 x 55 mm 3.8 kg


Lumen Efficacy 110 lm/W
Input Voltage 100-277 VAC
CCT 4000K / 5000K
CRI >70
Beam Angle 90°
Rated Life 30000 hours
Working Temperature -20°C to +45°C
Warranty 2 Years




Mounting Options

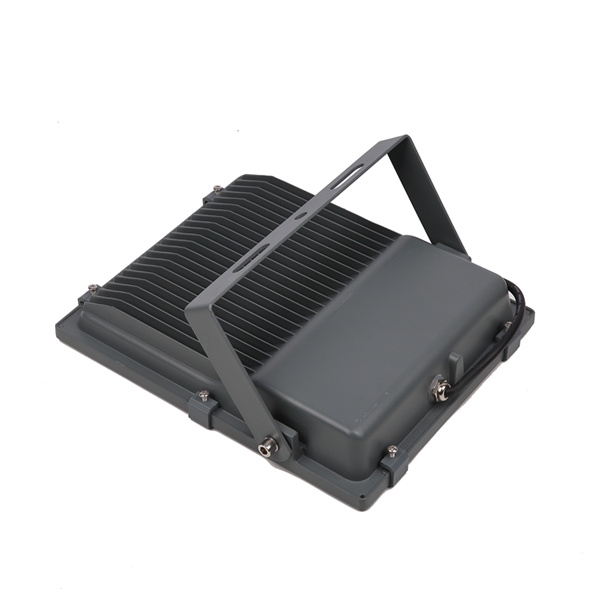

Yoke with 1/2‘‘ Threaded Fitting


Certificates

CE, RoHS


Applications

For mounting on poles or walls to illuminate building perimeters,
walkways, and landscapes or for wall graze and wall wash accent lighting
